SW2030V Milling Machine

Fresadora gran formato

STOCK - IMMEDIATE DELIVERY

Customizable. Contact us.

Large format CNC milling machine, very robust, capable of performing cutting, engraving or reliefs in which a strong vacuum clamping is essential. Customizable, but prepared for large carpentry, signage companies, heavy industry, etc. 2D and 3D works on wood, resins, aluminium, composites cutting and folding, plastics and many other materials. 3D engravings, prototyping, moulds, labels, construction materials (drywalls, solid surface, etc.). With the appropriate milling cutter, there won’t be anything you can’t mill.

CONFIGURABLE ADD-ON SYSTEMS

We can customize the work area, the electrospindle and configure all the complementary systems you need:

It is possible to customize the working area of this model in any of the 3 axes, adapting it to your real production needs.

Example of manufacturing with special measurements:

fresadora con cambio automático de fresas

In this milling machine based on the SW2030V, the vacuum system was eliminated, automatic tool change was incorporated and an additional motor on the horizontal plane with automatic rotation capacity of 180º on the Z axis was added. Its control system allows to perform a large number of operations in a simple way, as well as the automatic change between both electrospindles to be able to perform machining operations both horizontally and vertically. Its XYZ axis is 2100 x 3100 x 350 mm.

Example of manufacturing with special measurements:

Sistema óptico OPOS

This customized model incorporates the OPOS system, which allows optical positioning by means of a CCD camera for automatic die cutting. This system makes the machine able to see and cut a drawing (shapes, logos, shields, etc.). It is able to work with both its milling motor and its cutting blade. Creating a much more complete and versatile machine, allowing to expand the offer of a workshop dedicated to posters, signage, textile marking, graphic arts… It also incorporates, in the same head, a V-blade for angled cuts. Its working area is XYZ: 2100 x 3100 mm x 250 mm. useful, 350 mm. total stroke.

Example of manufacturing with special measurements:

Fresadora gran formato

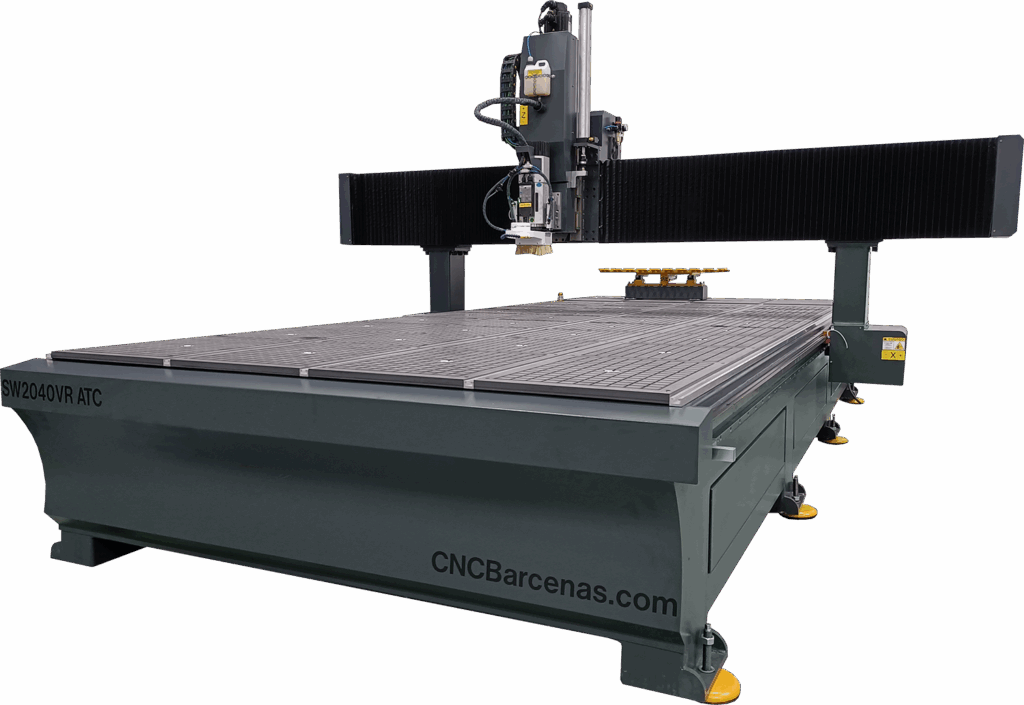

Model Sw2040V, based on SW2030V but with a larger working area XYZ: 2100 X 4100 X 200 MM. This allows to work plants and materials of large dimensions. It shares the rest of the features with the base model SW2030V but uses 3 vacuum pumps.

Example of manufacturing with special measurements:

Fresadora gran formato

Custom CNC milling machine with large format ATC and double milling motor and oscillating cutting blade, capable of performing all possible jobs such as cutting, engraving, reliefs… Thanks to its double motor system (ATC) it is able to interchange between the two motors during machining to work with double tools and even perform precise cuts on soft materials. It offers high performance and precision. XYZ working area: 2100 x 4100 x 200 mm.

Example of manufacturing with special measurements:

Example of manufacturing with special measurements:

special Z milling machines

Custom CNC milling machine with special Z-height and possibility to install an interpolated rotary Z-axis. Large volume milling machine created following the special needs of the customer in the height of the Z axis with 1200 mm. It allows milling high height materials, achieving a large total working volume.
XYZ working area: 2100 x 4100 x 1200 mm.

Example of manufacturing with special measurements:

fresadora gran formato industrial

Large format milling machine made to measure, with an XYZ working area of 2000 x 6000 x 700 mm. This large milling machine allows to work large parts both in 2D and 3D. A robust and highly productive machine.

With our automatic tool change systems, milling jobs will be much faster and more efficient, avoiding the need to change milling cutters during machining operations. This system allows to create the designs with the tools already defined. It can be installed on the milling spindle itself or by means of a rear system that allows to have a large number of different tools ready.

cambio automático de herramientas

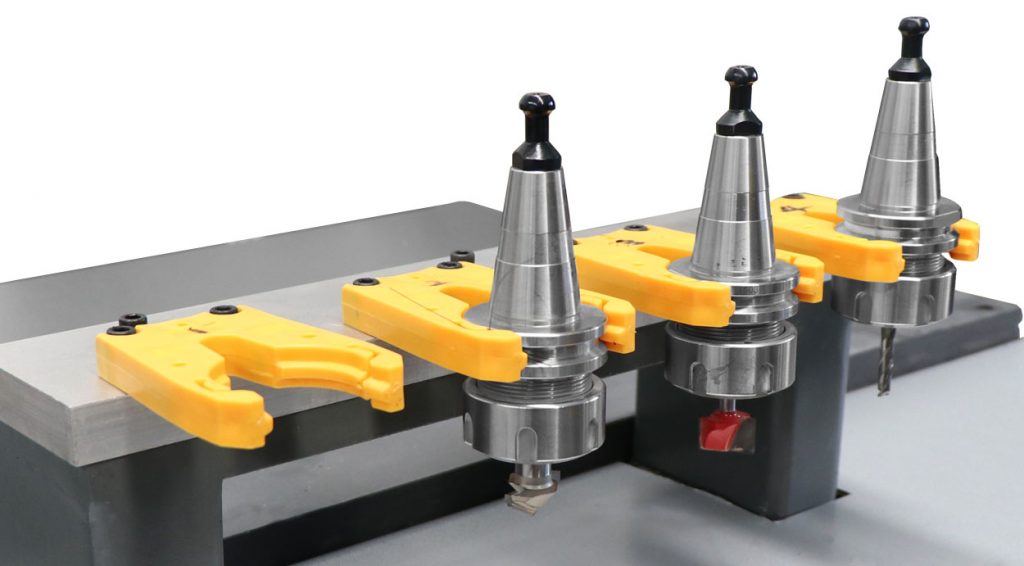

Incorporated at the rear of the milling machine: This automatic tool change allows to have from 4 tools ready. The change between them is automatic during machining. It eliminates the need for manual tool change during machining.

cambio herramientas fresadora

Installed on the spindle of the milling machine: This system allows switching between the different tools on the spindle.

Rotary Z axis / 4th rotary axis – CNC Lathe. Thanks to these axes, it is possible to manufacture much more complex parts, we have several possible configurations of this system, the first one is with electrospindle rotation on the Z axis, the other is the installation of a 4th rotary axis / lathe either as a complement on the milling machine table or incorporated into the machine structure itself.

Rotary Electrospindle

rotacion eje z 90 interpolado

It is possible to install the interpolated rotary Z axis, to be able to work in the range of -90º to 90º, allowing to machine 3D parts of great geometric complexity in that range of 180º.

An extremely useful option in industrial environments that require more complete machining systems with higher CNC machining performance.

Milling Machine - Lathe

torno de mecanizado 360 grados

It is possible to custom manufacture a machining lathe, which allows to work on a block of material in 360 degrees, allowing to machine 3D parts of great geometric complexity in the range of 360º.

Built-in Lathe

fresadora cnc barcenas con 4 eje torno integrado

Built into the milling machine structure: In this case, the working area of the fourth axis is 500 mm diameter x 2,000 mm long. Being an additional element installed outside the useful surface of the worktable, it does not modify the height of the Z axis of the milling machine, which would still be 200 mm.

Lathe

torno fresado

Installed on the table surface: In this case, the working area of the fourth axis is 200 mm. diameter x 600 mm. long and the Z axis of the milling machine is increased from 200 mm. to 250 mm.

This accessory for CNC routers performs perfect cuts in materials that must be cut with a knife because they cannot be cut with routers, such as: cardboard, corrugated cardboard, paper, featherboard, rubber, balsa wood, wood veneer, rubber, honeycomb… There is the possibility of installing a folding wheel for cardboard folding.

Oscillating Knife

cuchilla de corte oscilante

Oscillating cutting blade up to 45 mm. It has a protective sheath to avoid accidents and cuts.

V-Cutting Blade

Cuchilla corte en angulo

It allows to make angle cuts in different degrees, 30º, 45º, 60º…

Folding Wheel

Rueda de plegado CNC Barcenas

Allows folding lines to be made on different materials such as cardboard.

Cuchilla corte oscilante para papel y cartón
sistema opos

The OPOS system is a CCD camera optical tracking system for automatic die cutting, which allows the creation of optimal and precise trajectories. This system makes the machine able to see and cut a drawing (shapes, logos, shields, etc.).

The OPOS system installed together with our oscillating cutting blade, creates a much more complete and versatile tool, allowing to expand the offer of a workshop dedicated to signage, signage, textile marking, graphic arts…

OPOS machines are better suited to design professionals who need faster and more precise cutting.

corte troqueles OPOS cámara ccd

Other extremely useful configurable systems that will facilitate your machining process.

CNC Milling Cutter Cooler

refrigeracion de fresa micro niebla cncbarcenas

This accessory is necessary when cutting and engraving materials such as metals, aluminum… to avoid the breakage of the milling cutter due to heating during machining. It is possible to use it only for air cooling, without micro-fogging, or also with a mixture of air and liquid, adjustable at will and easy to position in the right place. Its use and maintenance is simple and easy.

Chip Extractor

extractor de viruta cncbarcenas

Specially designed for chip extraction from all types of materials such as plastics or wood at the time of machining. This accessory is ideal for keeping the workpiece and the milling machine free of dirt during cutting or engraving. Its perfect integration with the milling machine makes it very easy to use at the touch of a button. A highly recommended accessory especially for environments that need to remain clean during the work due to their special conditions.

Perimeter Protection

Sistema de Protección Perimetral con Células Fotoeléctricas

Perimeter protection system with photoelectric cells is the perfect safety complement. The system stops the milling machine’s work when it detects improper entries during machining operations, thus creating an extremely safe working environment. It is integrated into the machine for easy and automatic use.

We have several software options for the design and creation of your machining. Each one of them is designed for a specific type of applications and sectors. We will advise you on the most suitable for your work.

Cut2D Pro

cut 2D software fresadora cnc

Simple and intuitive design and creation of 2D machining. It brings together the main functions and features of cutting and engraving, as well as drilling and text engraving. Ideal for carpentry and sign making. Allows import/export in: DWG, DXF, EPS, AI, PDF….

Machining of external and internal cutting, drilling, drilling/drilling and engraving. Preview of the designed machining.

VCarve Pro

Software profesional fresadora VCarve pro

Offers a professional intermediate solution between Cut2D Pro and Aspire. It offers the ability to produce 2.5D toolpaths, such as V-cut, chamfer, spline, prism and molding, as well as the ability to import and machine a 3D model.

Import of 3D files: STL, DXF, OBJ… Roughing and finishing machining in 3D. Also imports DWG, DXF, EPS, AI, PDF vectors… Preview of machining operations.

Aspire

Software control numérico Aspire

A powerful yet easy-to-use software solution for 2D design and machining, as well as 3D relief modeling and milling. It allows you to create everything from simple cuts, reliefs, carvings or 3D parts.

3D component design from 2D vectors. 3D creation from image files. Roughing and finishing processes in 3D. Interactive model editing: Sculpting, blending, and smoothing. Import of 3D files and vectors. Preview of machining.

VisualCAM

visualcam software mecanizado

VisualCAD/CAM: It is the highest rated CAD/CAM system on the market. It includes everything needed to address the specific needs of the most advanced CNC manufacturing processes. Extremely versatile and can be used for a wide variety of applications and industries, such as aerospace, automotive, production, prototyping, education, architecture… One of the best CAM programs and with the best price-performance in the market.

RHINOCAM: CAM software add-in that runs completely inside Rhinoceros 6.0 and 7.0 (Windows). It combines the power of Rhino’s free-form modeling with the great CAM functionality of VisualCAM to offer a product of unparalleled capability.
