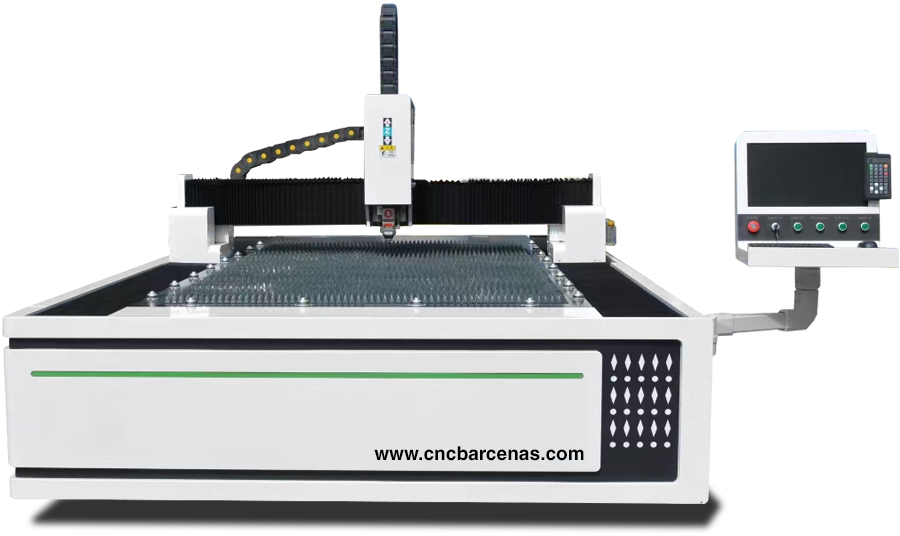

Fiber Laser. Cutting carbon steel, stainless steel, aluminum, copper, etc.
The fiber laser, thanks to its powerful system, allows for high-quality and high-speed cutting on materials such as carbon steel, stainless steel, aluminum, copper, etc. In addition, its simple and practical CNC control system allows for easy and intuitive use.
In addition, it is possible to incorporate a CO2 system into the head to create a hybrid system, creating a much more versatile and complete system, allowing cutting not only metals but also wood, plastics, etc.
Both options are custom-built with the required work area, featuring a closed-cab system for demanding industrial environments. It can be manufactured without a closed cab if necessary.
It is possible to manufacture your new fiber laser with an closed-cab system, which is essential for demanding industrial environments.
Model: Hybrid Laser :
Model: Hybrid Laser :
High precision CNC machines for multiple industrial, research and creative sectors.
At CNC Bárcenas , we are committed to offering you the best solutions in industrial CNC machinery and large-format 3D printers tailored to your needs. If you have any questions, would like more information about our products, or need personalized advice, please don’t hesitate to contact our team of experts.
This machine is designed to cut a wide variety of metals with high quality and speed. It is capable of working on carbon steel, stainless steel, aluminum, and copper, among others, ensuring precise and clean finishes thanks to its fiber technology.
The standard model offers a working area of 1500 x 3000 x 50 mm, equipped with a 3000 W fiber laser power. It includes 1300 W Delta servomotors, dual motors on the Y-axis, and a 25 mm rack and pinion transmission system, all controlled by the CYPcut Control System 2000.
The Hybrid Laser system is an option that allows an additional CO2 laser head to be incorporated into the fiber equipment. This makes the machine a much more versatile tool capable of cutting not only metals, but also non-metallic materials such as wood, plastics (methacrylate), and MDF, combining the best of both technologies in a single piece of equipment.
With the 3000 W configuration, the machine can cut stainless steel from 1 to 8 mm, carbon steel from 1 to 18 mm (reaching speeds of 2.7 m/min at 6 mm), aluminum from 1 to 4 mm, and copper from 1 to 5 mm. For the hybrid model (with 1500 W fiber), it cuts carbon steel up to 8 mm and stainless steel up to 5 mm.
Yes, the cutter is delivered fully equipped for immediate operation. It includes an industrial refrigerator for temperature control, a membrane compressor for blowing on the material, and a laser pointer to facilitate accurate initial positioning before cutting.
Todas nuestras máquinas están optimizadas para ofrecer un acabado profesional y preciso en cada uno de ellos.
Absolutely. The machines are custom-built and can be configured with an enclosed cab, recommended for industrial environments that require greater safety and emissions control. However, it is also possible to manufacture the equipment without an enclosed cab if customer or space requirements dictate.
